Power Conversion System

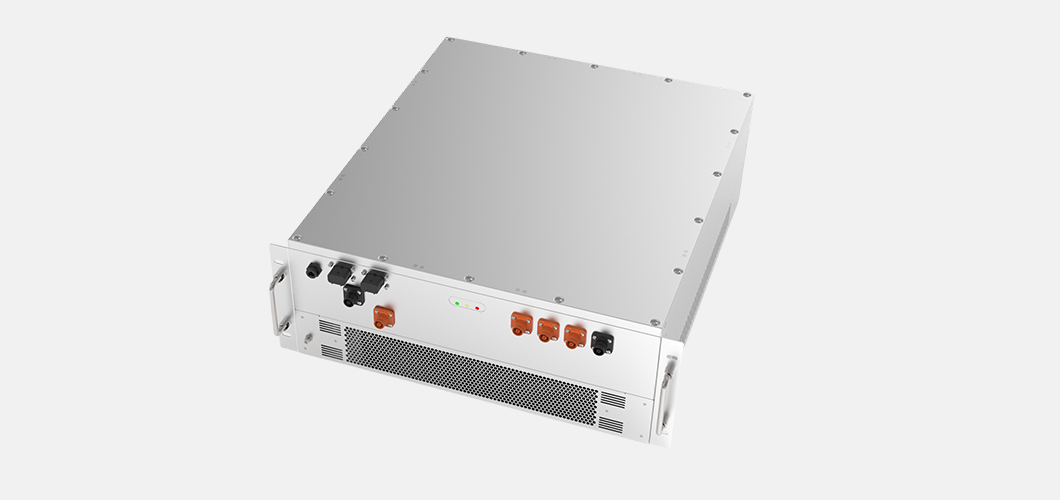

Power Conversion System (PCS) is a bidirectional current controllable conversion device that connects the energy storage battery system and the grid.Its main function is to accurately and quickly adjust the voltage, frequency and power between the grid and the energy storage system, to achieve constant power and constant current charging and discharging and smooth fluctuation power output.The energy storage converter not only meets the inverter requirements of the traditional grid-connected converter to convert DC to AC, but also meets the bi-directional conversion requirements brought by the "charge + discharge" of the energy storage system. It has the function of charging and discharging the battery, and is suitable for a variety of occasions such as photovoltaic, wind power generation power smoothing, peak filling, and micro grid.

Specification

Technology Platform

3-level or 2-level bidirectional conversion
DC Side Voltage

600Vdc-950Vdc(>950V limit) 685Vdc-950Vdc(>950V limit)
AC Side Voltage

380Vac��10%��690V��10%Vac
Output Power

125kW��250kW
Efficiency

98%
Packaging

Standard metal shell/module type

Core Advantages

Conversion efficiency 99%+
Accurate power control
Intelligent energy management
Modular design
Flexible configuration and extension

Product Application Scenarios

PCS can be applied to new energy power stations, microgrids, smart grids, transportation, ships, wind power, solar energy and other industries.

Specific applications include energy time-shift, peak-valley arbitrage, dynamic capacity expansion, micro-grid systems, frequency and peak modulation of power systems, etc.

In the user side of the energy storage system, the PCS storage converter can undertake peak valley arbitrage, through the period of electricity price is low, in the period of high prices for discharge, achieve low charge high discharge carry, save the park overall power cost.
